High Available Mosquitto MQTT on Kubernetes

Published: 14-05-2025 22:11 | Author: Remy van Elst | Text only version of this article


In this post, we'll walk through a fully declarative, Kubernetes-native setup for running a highly available MQTT broker using Eclipse Mosquitto. This configuration leverages core Kubernetes primitives (Deployments, Services, ConfigMaps, and RBAC), alongside Traefik IngressRouteTCP to expose MQTT traffic externally. It introduces a lightweight, self-healing failover mechanism that automatically reroutes traffic to a secondary broker if the primary becomes unhealthy. The setup also demonstrates internal MQTT bridging, allowing seamless message propagation between brokers. The big advantage over a single Pod deployment (which, in case of node failure, k8s will restart after 5 minutes) is that this setup has a downtime of only 5 seconds and shared state, so all messages will be available on a failover.

Recently I removed all Google Ads from this site due to their invasive tracking, as well as Google Analytics. Please, if you found this content useful, consider a small donation using any of the options below. It means the world to me if you show your appreciation and you'll help pay the server costs:

GitHub Sponsorship

PCBWay referral link (You get $5, I get $20 after you've placed an order)

Digital Ocea referral link ($200 credit for 60 days. Spend $25 after your credit expires and I'll get $25!)

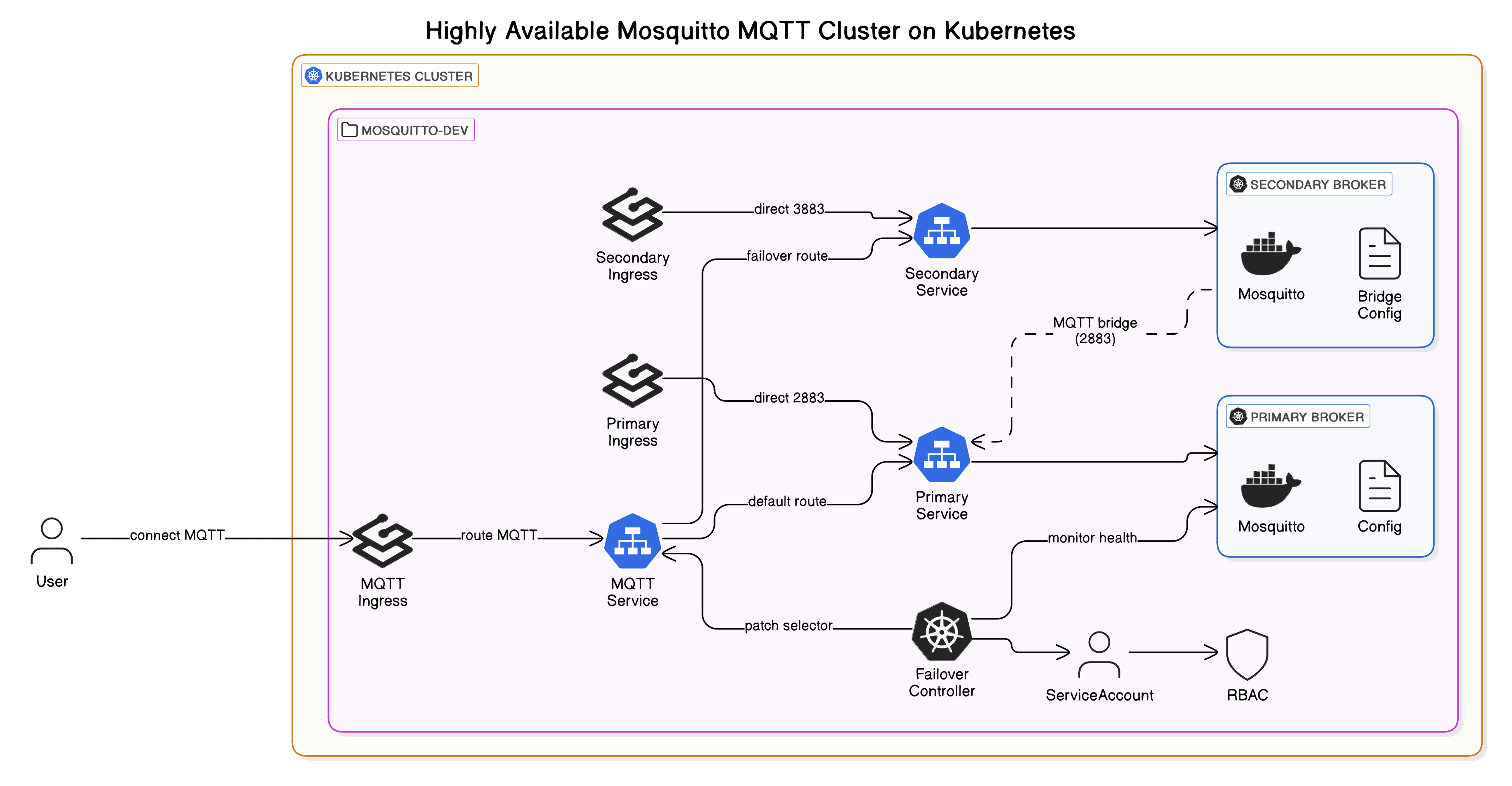

diagram

Diagram of the setup

This guide assumes you have a working Kubernetes setup using Traefik. In my case the version of Kubernetes/k3s I use for this article is v1.32.2+k3s1.

If you haven't got such a cluster, maybe checkout all my other kubernetes posts.

In a typical Kubernetes deployment with a single Mosquitto pod, resilience is limited. If the node running the pod fails, Kubernetes can take up to 5 minutes to detect the failure and recover. This delay stems from the default node-monitor-grace-period, which is often set to 5 minutes (300s). During this window, MQTT clients lose connectivity, messages are dropped, and systems depending on real-time messaging may suffer degraded performance or enter fault modes.

The configuration presented here avoids that downtime by deploying both a primary and secondary Mosquitto broker, each in its own pod, scheduled on different nodes and using a custom failover controller to handle traffic redirection. A lightweight controller monitors the readiness of the primary pod and, if it becomes unavailable, patches the Kubernetes Service to reroute traffic to the secondary broker within 5 seconds. This dramatically reduces recovery time and improves system responsiveness during failures.

Because the secondary broker is always running and bridged to the primary, it maintains near-real-time message state. Clients continue connecting to the same LoadBalancer endpoint (raymii-mosquitto-svc), with no need to update client configurations or manage DNS changes. The failover is transparent and fast, ensuring message flow continues even when the primary is offline.

This article is targeted to using k3s and traefik. Adapting it for nginx shouldn't be hard.

Summary

This is a summary of what the YAML file does. The two mosquitto instances are both accessible on their own ports (2883 for the primary, 3883 for the secondary) as well as port 1883 (which has automatic failover). Clients should connect to port 1883 and the other ports are avilable for monitoring.

The mosquitto instances are configured to bridge all messages. Anything that gets published to the primary, is published to the secondary and vice versa. When a failover happens, clients loose connection and must reconnect, but the secondary broker has all messages(including retained ones). When the primary is back online, one other reconnect is required by clients. You can tweak the failover controller to keep the secondary act as the primary, until the secondary fails, but that is out of scope for this article.

The Pod that runs the failover monitoring is scheduled on a different Node due to Affinity. That failover Pod only restarts every 5 minutes or so in case of failure. If the Node that runs the failover pod fails AND the Node running the primary pod fails, failover won't happen until the failover Pod is back up again. So in some rare cases failover might still take 5 minutes. Even then, due to the bridge config, less messages would be lost.ZX

In my intented use case, clients reconnect whenever there is a failure and publish retained messages when connecting, so failover back is not a problem.

Any retained messages that were published to the secondary, during an outage, are published back to the primary due to the bridge configuration.

1. Namespace & ConfigMaps

  • Creates a raymii-mosquitto-dev namespace.
  • Two ConfigMaps:
    • Primary Broker ConfigMap: Configures the primary broker to listen on ports 1883 (external) and 2883 (for bridge to connect to).
    • Secondary Broker ConfigMap: Configures the secondary broker to bridge to the primary on port 2883, and listens on ports 1883 (external) and 3883.

2. Deployments

  • raymii-mosquitto-primary:
    • Listens on ports 1883 (external) and 2883 (for the bridge to connect to).
  • raymii-mosquitto-secondary:
    • Bridges to the primary on port 2883.
    • Listens on ports 1883 (external) and 3883.
  • raymii-mosquitto-failover:
    • Pod with a shell loop checking the readiness of the primary broker.
    • If the primary is not ready, it patches the selector of raymii-mosquitto-svc to point to the secondary broker, redirecting traffic to it.

3. Services

  • raymii-mosquitto-svc:
    • Main LoadBalancer service, dynamically routing traffic to either the primary or secondary broker.
  • raymii-mosquitto-primary-svc:
    • Directs traffic to the primary broker's second listener (2883).
  • raymii-mosquitto-secondary-svc:
    • Directs traffic to the secondary broker's second listener (3883).

4. RBAC

  • Role and binding allowing the failover pod to:
    • Get, list, and patch pods and services.
    • Used by the failover pod to check status every 5 seconds and, if needed, failover.

5. Traefik IngressRouteTCP

  • raymii-mosquitto-dev-mqtt:
    • Routes external MQTT traffic to raymii-mosquitto-svc.
  • Direct routes for primary and secondary brokers as well.

Why the Mosquitto Failover Pod Needs a Service Account

In Kubernetes, no pod can access cluster resources by default, not even to check the status of other pods or patch services. That's a problem when the Mosquitto failover pod needs to monitor the broker health and switch traffic between primary and secondary. Without the right permissions, the failover logic silently fails.

Therefore we must create a ServiceAccount, bind it to a Role with get, list, and patch permissions for pods and services, and assign it to the failover pod. This RBAC setup is the only way to let the pod query health and dynamically reroute traffic via kubectl.

How the Mosquitto Failover Pod Keeps the MQTT Service Alive

The raymii-mosquitto-failover pod is a lightweight control loop designed for one purpose: keep MQTT traffic flowing even when the primary broker goes down. It continuously checks the readiness of the primary Mosquitto pod. If the primary fails, it patches the raymii-mosquitto-svc service to route traffic to the secondary broker. When the primary recovers, traffic is restored automatically. to the primary.

This pod runs kubectl inside a shell loop, using Kubernetes API calls to detect health and redirect traffic. It's deliberately simple, no operators, no sidecars, no custom resources.

I could build a custom controller, but that's overkill. Controllers bring overhead, extra code, CRDs, lifecycle management, and more complexity for something this specific. The failover pod trades abstraction for control: it's readable, auditable, debuggable, and deploys instantly. For one job done right, less is more.

Now for the summary of the YAML file.

What happens when the primary node is down?

The setup ran, on three nodes. One for the primary, one for the secondary and one for the failover monitoring.

I pulled the network cable of the k3s server running the primary node. Clients disconnected, but reconnected after a few seconds to the raymii-mosquitto-svc Service, landing on the secondary node.

After a few minutes, more than 5, I plugged the network cable back in to the k3s server that was hosting the primary pod. The failover Pod noticed and patched the service and back again:

kubectl logs -n raymii-mosquitto-dev -l app=mosquitto-failover

Output:

service/raymii-mosquitto-svc patched (no change)
Wed May 14 18:58:30 UTC 2025 - Primary healthy, routing to primary.
service/raymii-mosquitto-svc patched
Wed May 14 19:11:54 UTC 2025 - Primary down, routing to secondary.
service/raymii-mosquitto-svc patched
Wed May 14 19:13:41 UTC 2025 - Primary healthy, routing to primary.

K8S Deployment YAML file

This is the YAML file, including the k3s 1.32 HelmChartConfig to expose ports other than 443 and 80. If you use NGINX you must adapt that part to your setup.

The namespace is raymii-mosquitto-dev. Search and replace if you want a different namespace. Maybe attach a persistent volume if you use certificates or a custom CA for authentication, or where you save the mosquitto persistent DB. For my usecase, where clients publish retained on every connect, there is no need to save the raymii-mosquitto.db file. You might want to use Longhorn or to save that state. For simplicity, I'm using a ConfigMap for the broker configuration.

---
apiVersion: v1
kind: Namespace
metadata:
  name: raymii-mosquitto-dev
---
apiVersion: v1
kind: ConfigMap
metadata:
  name: raymii-mosquitto-primary-config
  namespace: raymii-mosquitto-dev
data:
  raymii-mosquitto.conf: |
    listener 1883
    allow_anonymous true
    listener 2883
    allow_anonymous true
---
apiVersion: v1
kind: ConfigMap
metadata:
  name: raymii-mosquitto-bridge-config
  namespace: raymii-mosquitto-dev
data:
  raymii-mosquitto.conf: |
    listener 1883
    allow_anonymous true
    listener 3883
    allow_anonymous true
    connection bridge-to-primary
    address raymii-mosquitto-primary-svc.raymii-mosquitto-dev.svc.cluster.local:2883
    clientid raymii-mosquitto-bridge
    topic # both 0
    start_type automatic
    try_private true
    notifications true
    restart_timeout 5
---
apiVersion: apps/v1
kind: Deployment
metadata:
  name: raymii-mosquitto-primary
  namespace: raymii-mosquitto-dev
spec:
  replicas: 1
  selector:
    matchLabels:
      app: raymii-mosquitto
      role: primary
  template:
    metadata:
      labels:
        app: raymii-mosquitto
        role: primary
    spec:
      containers:
      - name: raymii-mosquitto
        image: eclipse-mosquitto:2.0.21
        command: ["mosquitto"]
        args: ["-c", "/raymii-mosquitto/config/raymii-mosquitto.conf"]
        ports:
        - containerPort: 1883
        - containerPort: 2883
        livenessProbe:
          tcpSocket:
            port: 1883
          initialDelaySeconds: 5
          periodSeconds: 10
        readinessProbe:
          tcpSocket:
            port: 1883
          initialDelaySeconds: 5
          periodSeconds: 10
        volumeMounts:
        - name: primary-config
          mountPath: /raymii-mosquitto/config/
      volumes:
      - name: primary-config
        configMap:
          name: raymii-mosquitto-primary-config
      affinity:
        podAntiAffinity:
          requiredDuringSchedulingIgnoredDuringExecution:
            - labelSelector:
                matchExpressions:
                  - key: app
                    operator: In
                    values:
                      - raymii-mosquitto
              topologyKey: kubernetes.io/hostname
---
apiVersion: apps/v1
kind: Deployment
metadata:
  name: raymii-mosquitto-secondary
  namespace: raymii-mosquitto-dev
spec:
  replicas: 1
  selector:
    matchLabels:
      app: raymii-mosquitto
      role: secondary
  template:
    metadata:
      labels:
        app: raymii-mosquitto
        role: secondary
    spec:
      containers:
      - name: raymii-mosquitto
        image: eclipse-mosquitto:2.0.21
        command: ["mosquitto"]
        args: ["-c", "/raymii-mosquitto/config/raymii-mosquitto.conf"]
        ports:
        - containerPort: 1883
        - containerPort: 3883
        livenessProbe:
          tcpSocket:
            port: 1883
          initialDelaySeconds: 5
          periodSeconds: 10
        readinessProbe:
          tcpSocket:
            port: 1883
          initialDelaySeconds: 5
          periodSeconds: 10
        volumeMounts:
        - name: bridge-config
          mountPath: /raymii-mosquitto/config/
      volumes:
      - name: bridge-config
        configMap:
          name: raymii-mosquitto-bridge-config
      restartPolicy: Always
      affinity:
        podAntiAffinity:
          requiredDuringSchedulingIgnoredDuringExecution:
            - labelSelector:
                matchExpressions:
                  - key: app
                    operator: In
                    values:
                      - raymii-mosquitto
              topologyKey: kubernetes.io/hostname
---
apiVersion: v1
kind: Service
metadata:
  name: raymii-mosquitto-svc
  namespace: raymii-mosquitto-dev
spec:
  type: LoadBalancer
  selector:
    app: raymii-mosquitto
    role: primary
  ports:
  - port: 1883
    targetPort: 1883
    protocol: TCP
---
apiVersion: v1
kind: Service
metadata:
  name: raymii-mosquitto-primary-svc
  namespace: raymii-mosquitto-dev
spec:
  type: LoadBalancer
  selector:
    app: raymii-mosquitto
    role: primary
  ports:
  - port: 2883
    targetPort: 2883
    protocol: TCP
---
apiVersion: v1
kind: Service
metadata:
  name: raymii-mosquitto-secondary-svc
  namespace: raymii-mosquitto-dev
spec:
  type: LoadBalancer
  selector:
    app: raymii-mosquitto
    role: secondary
  ports:
  - port: 3883
    targetPort: 3883
    protocol: TCP
---
apiVersion: apps/v1
kind: Deployment
metadata:
  name: raymii-mosquitto-failover
  namespace: raymii-mosquitto-dev
spec:
  replicas: 1
  selector:
    matchLabels:
      app: raymii-mosquitto-failover
  template:
    metadata:
      labels:
        app: raymii-mosquitto-failover
    spec:
      serviceAccountName: raymii-mosquitto-failover-sa
      containers:
      - name: failover
        image: bitnami/kubectl
        command:
        - /bin/sh
        - -c
        - |
          PREV_STATUS=""
          while true; do
            STATUS=$(kubectl get pod -l app=raymii-mosquitto,role=primary -n raymii-mosquitto-dev -o jsonpath='{.items[0].status.conditions[?(@.type=="Ready")].status}')
            if [ "$STATUS" != "$PREV_STATUS" ]; then
              if [ "$STATUS" != "True" ]; then
                kubectl patch service raymii-mosquitto-svc -n raymii-mosquitto-dev -p '{"spec":{"selector":{"app":"raymii-mosquitto","role":"secondary"}}}'
                echo "$(date) - Primary down, routing to secondary."
              else
                kubectl patch service raymii-mosquitto-svc -n raymii-mosquitto-dev -p '{"spec":{"selector":{"app":"raymii-mosquitto","role":"primary"}}}'
                echo "$(date) - Primary healthy, routing to primary."
              fi
              PREV_STATUS="$STATUS"
            fi
            sleep 5
          done
      affinity:
        podAntiAffinity:
          requiredDuringSchedulingIgnoredDuringExecution:
            - labelSelector:
                matchExpressions:
                  - key: app
                    operator: In
                    values:
                      - raymii-mosquitto
              topologyKey: kubernetes.io/hostname
---
apiVersion: v1
kind: ServiceAccount
metadata:
  name: raymii-mosquitto-failover-sa
  namespace: raymii-mosquitto-dev
---
apiVersion: rbac.authorization.k8s.io/v1
kind: Role
metadata:
  name: raymii-mosquitto-failover-role
  namespace: raymii-mosquitto-dev
rules:
- apiGroups: [""]
  resources: ["pods", "services"]
  verbs: ["get", "patch", "list"]
---
apiVersion: rbac.authorization.k8s.io/v1
kind: RoleBinding
metadata:
  name: raymii-mosquitto-failover-rb
  namespace: raymii-mosquitto-dev
roleRef:
  apiGroup: rbac.authorization.k8s.io
  kind: Role
  name: raymii-mosquitto-failover-role
subjects:
- kind: ServiceAccount
  name: raymii-mosquitto-failover-sa
  namespace: raymii-mosquitto-dev
---
apiVersion: traefik.io/v1alpha1
kind: IngressRouteTCP
metadata:
  name: raymii-mosquitto-dev-mqtt
  namespace: raymii-mosquitto-dev
spec:
  entryPoints:
    - raymii-mosquitto-dev-mqtt
  routes:
    - match: HostSNI(`*`)
      services:
        - name: raymii-mosquitto-svc
          port: 1883
---
apiVersion: traefik.io/v1alpha1
kind: IngressRouteTCP
metadata:
  name: raymii-mosquitto-dev-mqtt-primary
  namespace: raymii-mosquitto-dev
spec:
  entryPoints:
    - raymii-mosquitto-dev-mqtt-primary
  routes:
    - match: HostSNI(`*`)
      services:
        - name: raymii-mosquitto-primary-svc
          port: 2883
---
apiVersion: traefik.io/v1alpha1
kind: IngressRouteTCP
metadata:
  name: raymii-mosquitto-dev-mqtt-secondary
  namespace: raymii-mosquitto-dev
spec:
  entryPoints:
    - raymii-mosquitto-dev-mqtt-secondary
  routes:
    - match: HostSNI(`*`)
      services:
        - name: raymii-mosquitto-secondary-svc
          port: 3883

Traefik Helm Chart Config for k3s

In k3s 1.32, Traefik is the default ingress controller, but by default, it's wired only for HTTP(S) routing. The moment you need to route TCP services like MQTT (ports 1883, 2883, 3883), you hit a hard wall unless you explicitly configure Traefik to expose those ports. That's where the HelmChartConfig CRD becomes essential.

By creating a HelmChartConfig with the correct valuesContent, you're injecting custom values into the Traefik Helm chart managed by k3s itself. Without this, Traefik won't bind to additional TCP ports, won't route traffic to the MQTT services and won't even start listeners, because k3s uses its own embedded Helm controller and you can't patch the deployment directly. This configuration is the only supported way to modify the Traefik deployment in-place when using the bundled k3s setup.

K3s watches this HelmChartConfig, applies the changes during Traefik chart reconciliation, and ensures that ports like 1883, 2883, 3883 are properly exposed at the node level and routed to the right IngressRouteTCP rules.

This is the YAML file:

apiVersion: helm.cattle.io/v1
kind: HelmChartConfig
metadata:
  name: traefik
  namespace: kube-system
spec:
  valuesContent: |-
    logs:
      general:
        level: "DEBUG"
      access:
        enabled: false
    ports:
      web:
        port: 80
        expose:
          default: true
      websecure:
        port: 443
        expose:
          default: true
      raymii-mosquitto-dev-mqtt:
        port: 1883
        expose:
          default: true
        exposedPort: 1883
      raymii-mosquitto-dev-mqtt-primary:
        port: 2883
        expose:
          default: true
        exposedPort: 2883
      raymii-mosquitto-dev-mqtt-secondary:
        port: 3883
        expose:
          default: true
        exposedPort: 3883
Tags: armbian , cloud , ha , high-availability , k3s , k8s , kubernetes , linux , mosquitto , mqtt , orange-pi , raspberry-pi , traefik , tutorials
