This is a text-only version of the following page on https://raymii.org: --- Title : Netboot (PXE) Armbian on an Orange Pi Zero 3 from SPI with NFS root filesystem Author : Remy van Elst Date : 25-06-2024 22:30 URL : https://raymii.org/s/tutorials/Netboot_PXE_Armbian_on_an_Orange_Pi_Zero_3_from_SPI_with_NFS_root_filesystem.html Format : Markdown/HTML --- Because I wanted to experiment with Kubernetes I bought a few cheap SBC's and a Power over Ethernet switch to run `k3s`. Since Kubernetes is very resource intensive I wanted to try to boot the boards via the network without causing wear on the Micro SD card. The boards have built-in SPI flash from which it can boot `u-boot` and Armbian works quite well with a root filesystem over NFS. This guide will help you with netbooting an Orange Pi Zero 3 running Armbian.

Recently I removed all Google Ads from this site due to their invasive tracking, as well as Google Analytics. Please, if you found this content useful, consider a small donation using any of the options below. It means the world to me if you show your appreciation and you'll help pay the server costs:

GitHub Sponsorship

PCBWay referral link (You get $5, I get $20 after you've placed an order)

Digital Ocea referral link ($200 credit for 60 days. Spend $25 after your credit expires and I'll get $25!)

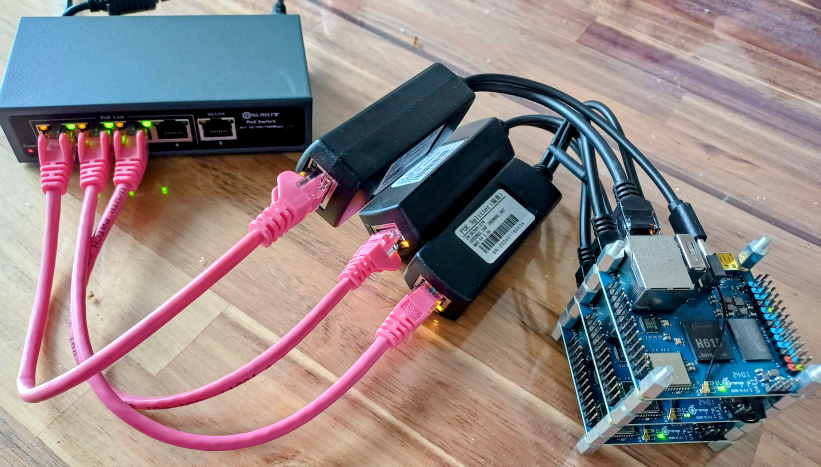

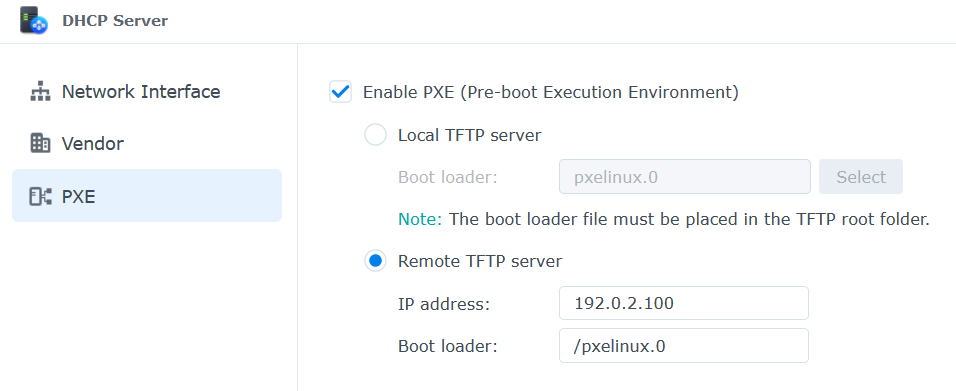

`k3s` is a lightweight version of Kubernetes. Production ready, easy to install, half the memory, all in a binary less than 100 MB and suitable for ARM. A follow up article will be available soon to document my first adventure with Kubernetes on this cluster. The SBC's are the [Orange Pi Zero 3] (https://web.archive.org/web/20240623200133/http://www.orangepi.org/html/hardWare/computerAndMicrocontrollers/details/Orange-Pi-Zero-3.html) with an Allwinner H618 Quad-Core Cortex-A53, gigabit Ethernet and 4GB of RAM, the latter being required for Kubernetes. Meet "The Cluster" and notice there are no Micro SD cards inserted: ![orange pies](/s/inc/img/k8s-cluster-hardware.png) The PoE switch provides power and the splitters turn it in to USB-C and Ethernet. It's the cheapest PoE switch I could find on AliExpress. You need console access via UART once to set a `u-boot` environment variable. This can be either an [FTDI TTL-232R-3V3] (https://web.archive.org/web/20240625181226/https://nl.farnell.com/ftdi/ttl-232r-3v3/cable-usb-to-ttl-level-serial/dp/1329311) cable or you can plug in a screen via (micro) HDMI and a keyboard. You need to have an NFS and TFTP server to serve the files and root filesystem. This guide will help you set that up. You need to be able to configure your DHCP server to provide certain options for TFTP. Most home routers cannot do that, but OpenWRT, Pi-Hole (`dnsmasq`) and Synology DHCP server can do it. ### Setup Orange Pi 3 SPI and u-boot I'm using `Armbian_community_24.8.0-trunk.139_Orangepizero3_bookworm_current_6.6.31_minimal.img.xz` but you can get the latest Debian 12 image [from the Armbian website] (https://www.armbian.com/orange-pi-zero-3/). Install Armbian to your Micro SD card and boot up your Orange Pi. The first part of the setup must be done from within Armbian booted via an SD card. Add the following lines to `/boot/armbianEnv.txt` to enable SPI: param_spidev_spi_bus=0 overlays=spidev0_0 Reboot and check for the SPI device: ls -l /dev/spi* crw------- 1 root root 153, 0 Jun 22 17:56 /dev/spidev0.0 The next step is to flash `u-boot` to the SPI flash. First we'll create an image that matches the exact size of the SPI-NOR flash, write `u-boot` to that file and then write that file to the flash chip. The size must match exactly, therefore we're using such a convoluted method. Create working directory: mkdir spiflash && cd spiflash Create an empty image which matches the SPI flash size: dd if=/dev/zero count=16777216 bs=1 | tr '\000' '\377' > spi.img Output: 16777216+0 records in 16777216+0 records out 16777216 bytes (17 MB, 16 MiB) copied, 42.8787 s, 391 kB/s Find the `u-boot` binary on the local filesystem: ls -al /usr/lib/linux-u-boot-*/*.bin Output: -rw-rw-r-- 1 root root 844437 May 20 00:47 /usr/lib/linux-u-boot-current-orangepizero3/u-boot-sunxi-with-spl.bin Write `u-boot` to SPI file: dd if=/usr/lib/linux-u-boot-current-orangepizero3/u-boot-sunxi-with-spl.bin of=spi.img bs=1k conv=notrunc Output: 824+1 records in 824+1 records out 844437 bytes (844 kB, 825 KiB) copied, 0.0421872 s, 20.0 MB/s If needed, install `flashrom`: apt install flashrom Write flash file with `u-boot` to SPI: flashrom -p linux_spi:dev=/dev/spidev0.0 -w spi.img Output: flashrom unknown on Linux 6.6.31-current-sunxi64 (aarch64) flashrom is free software, get the source code at https://flashrom.org Using clock_gettime for delay loops (clk_id: 1, resolution: 1ns). Using default 2000kHz clock. Use 'spispeed' parameter to override. === SFDP has autodetected a flash chip which is not natively supported by flashrom yet. All standard operations (read, verify, erase and write) should work, but to support all possible features we need to add them manually. You can help us by mailing us the output of the following command to flashrom@flashrom.org: 'flashrom -VV [plus the -p/--programmer parameter]' Thanks for your help! === Found Unknown flash chip "SFDP-capable chip" (16384 kB, SPI) on linux_spi. === This flash part has status UNTESTED for operations: WP The test status of this chip may have been updated in the latest development version of flashrom. If you are running the latest development version, please email a report to flashrom@flashrom.org if any of the above operations work correctly for you with this flash chip. Please include the flashrom log file for all operations you tested (see the man page for details), and mention which mainboard or programmer you tested in the subject line. Thanks for your help! Reading old flash chip contents... This takes a while, in my case about 5 minutes. Output continues: Reading old flash chip contents... done. Erasing and writing flash chip... Erase/write done. Verifying flash... VERIFIED. You can now `poweroff` the board and remove the Micro SD card. The bootloader will not boot from SPI if a Micro-SD card is inserted. ### Update u-boot environment I had to enable `netretry` otherwise my boards would be to fast trying PXE before DHCP was finished, and not retry again. **You must have flashed u-boot to the SPI and reboot without Micro SD card** Either use a UART serial cable or plug in a monitor and keyboard. Power up the board and stop autoboot: Autoboot in 1 seconds, press to stop On the u-boot prompt, enter the following commands (without `=>`): => setenv netretry yes => saveenv Output: Saving Environment to SPIFlash... Erasing SPI flash...Writing to SPI flash...done OK Now try booting with the `boot` command, or `reset`, whatever you prefer. I haven' t figured out how to update this before flashing u-boot to the SPI flash, if you know how please contact me! Installing `libubootenv-tool` to use `fw_printenv` fails, no matter what offsets I provide in the configuration file. Without the `netretry` option turned on, PXE would try to load the config files without having an IP address: Device 0: unknown device ethernet@5020000 Waiting for PHY auto negotiation to complete......... TIMEOUT ! The remote end did not respond in time.missing environment variable: pxeuuid Retrieving file: pxelinux.cfg/01-02-00-2e-12-34-56 *** ERROR: `serverip' not set Retrieving file: pxelinux.cfg/00000000 *** ERROR: `serverip' not set Retrieving file: pxelinux.cfg/0000000 *** ERROR: `serverip' not set Retrieving file: pxelinux.cfg/000000 *** ERROR: `serverip' not set Retrieving file: pxelinux.cfg/00000 *** ERROR: `serverip' not set Retrieving file: pxelinux.cfg/0000 *** ERROR: `serverip' not set Retrieving file: pxelinux.cfg/000 *** ERROR: `serverip' not set Retrieving file: pxelinux.cfg/00 *** ERROR: `serverip' not set Retrieving file: pxelinux.cfg/0 *** ERROR: `serverip' not set Retrieving file: pxelinux.cfg/default-arm-sunxi-sunxi *** ERROR: `serverip' not set Retrieving file: pxelinux.cfg/default-arm-sunxi *** ERROR: `serverip' not set Retrieving file: pxelinux.cfg/default-arm *** ERROR: `serverip' not set Retrieving file: pxelinux.cfg/default *** ERROR: `serverip' not set Config file not found After that the following lines would show up: BOOTP broadcast 1 DHCP client bound to address 192.0.2.60 (68 ms) It then would not retry PXE boot but just hang with these lines: No EFI system partition No EFI system partition Failed to persist EFI variables No UEFI binary known at 0x40080000 With `netretry` turned on it still does the above, but after it has got an IP via DHCP, it tries again and succeeds. ### Install TFTP & NFS server If you have a Synology NAS you can use that for the NFS and TFTP part. Or you can create new Debian 12 VM / container on your network and install a TFTP and NFS server: apt install nfs-kernel-server tftpd-hpa Note down the MAC address of the Orange Pi Zero 3. Look in your router's DHCP server or execute the following shell command in Armbian: ip link Output: [...] 2: end0: mtu 1500 qdisc mq state UP mode DEFAULT group default qlen 1000 link/ether 02:00:2e:12:34:56 brd ff:ff:ff:ff:ff:ff In our case the MAC is: 02-00-2e-12-34-56 **Make sure the Orange Pi 3 has a static IP address (I assign mine via DHCP but they are always the same)** Create a folder for the kernel and files which will be shared over NFS: mkdir -p /srv/exports/02-00-2e-12-34-56 (Use the MAC address of your Orange Pi board as the last part of the folder name.) Edit the following file: vim /etc/exports Add the folder we just made: /srv/exports/02-00-2e-12-34-56 192.0.2.60/32(rw,no_root_squash,async,insecure,no_subtree_check,crossmnt) Replace `192.0.2.60/32` by the IP of the Orange Pi and also update the MAC address. If you have multiple boards, create a folder and line in this file for each board. After each change, make the exports active with the following command: exportfs -arv Create a config file for TFTP: mkdir /srv/tftp/pxelinux.cfg vim /srv/tftp/pxelinux.cfg/01-02-00-2e-12-34-56 **Note that the MAC address is prefixed with 01-**. This is because `u-boot` in my case tried that file, not one without `01-`: Retrieving file: pxelinux.cfg/01-02-00-2e-12-34-56 # u-boot output Not sure why, but without the prefix it would not work. Add the following to that file: LABEL linux KERNEL vmlinuz-6.6.31-current-sunxi64 FDTDIR dtb-6.6.31-current-sunxi64 APPEND root=/dev/nfs initrd=uInitrd-6.6.31-current-sunxi64 nfsroot=192.168.1.60:/srv/exports/02-00-2e-12-34-56 ip=dhcp rw rootwait DEFAULT linux If your Armbian is newer, make sure to update the kernel version and also do not forget to set the `nfsroot` IP to your NFS server. You can find your kernel version by checking the `/boot` folder on your Orange Pi. For each board you have you must create a file based on the MAC address. Remember to update the NFS root path as well. Download `syslinux` for the `pxeboot.0` file: wget https://www.kernel.org/pub/linux/utils/boot/syslinux/syslinux-6.03.tar.gz Extract the archive: tar -xf syslinux-6.03.tar.gz Copy the file: cp syslinux-6.03/bios/core/pxelinux.0 /srv/tftp/ This might not be needed for other board, my `u-boot` version failed to boot without it. ### Preparing the rootfs over NFS Download the Armbian image you used to flash your Micro-SD card to the server that will host your NFS. Copy all files from the Armbian image to the NFS folder. First find the correct offset to mount the IMG file using `fdisk -lu`: fdisk -lu Armbian_community_24.8.0-trunk.6_Orangepizero3_bookworm_current_6.6.31_minimal.img Output: Disk Armbian_community_24.8.0-trunk.6_Orangepizero3_bookworm_current_6.6.31_minimal.img: 1.32 GiB, 1417674752 bytes, 2768896 sectors Units: sectors of 1 * 512 = 512 bytes Sector size (logical/physical): 512 bytes / 512 bytes I/O size (minimum/optimal): 512 bytes / 512 bytes Disklabel type: dos Disk identifier: 0xe1f58a1d Device Boot Start End Sectors Size Id Type Armbian_community_24.8.0-trunk.6_Orangepizero3_bookworm_current_6.6.31_minimal.img1 8192 2768895 2760704 1.3G 83 Linu You must multiply the `Start` sector by the `Sector Size` to get the correct byte offset, in our case: 8192*512 = 4194304 Mount the IMG file with that offset: mkdir /mnt/armbian mount -o offset=4194304 Armbian_community_24.8.0-trunk.6_Orangepizero3_bookworm_current_6.6.31_minimal.img /mnt/armbian Copy over all the files, preserving ownership (via the `-rp` flag): cp -rp /mnt/armbian/* /srv/exports/02-00-2e-12-34-56/ Update `fstab` to make sure the Orange Pi does not try to mount the SD card (which is missing): vim /srv/exports/02-00-2e-12-34-56/etc/fstab Comment out the topmost line since that is now available via NFS: #UUID=a117-[...]-51 / ext4 defaults,noatime,commit=600,errors=remount-ro 0 1 tmpfs /tmp tmpfs defaults,nosuid 0 0 You need to repeat the above steps for every board you have, make sure to update the MAC address in `/etc/exports` and folder names. Last but not least, copy the kernel and initrd files from the NFS folder to the TFTP folder: cp -rp /srv/exports/02-00-2e-12-34-56/boot/* /srv/tftp/ You need to update those files only once or when they change. Not for every different board like you had to do with the NFS root folder / exports. ### DHCP server setup You must setup your local DHCP server to include the PXE server IP and the filename (`pxelinux.0`). You can use `dnsmasq` or `OpenWRT` but configuring those is out of scope for this article. For testing I setup a separate network with a Synology NAS acting as the DHCP server, this is the configuration there: ![synology DHCP](/s/inc/img/k8s-dhcp.png) In OpenWRT you can edit this file: vi /etc/config/dhcp Add below config to the bottom config boot 'linux' option filename '/pxelinux.0' option serveraddress '192.0.2.100' ### Test Hook up your console cable or monitor and reboot the Orange Pi board without a Micro-SD card inserted. It should start to download the kernel via TFTP: Using ethernet@5020000 device TFTP from server 192.0.2.100; our IP address is 192.0.2.60 Filename 'pxelinux.cfg/01-02-00-2e-12-34-56'. Load address: 0x4fd00000 Loading: # 19.5 KiB/s done Bytes transferred = 220 (dc hex) Config file 'pxelinux.0' found 1: linux Retrieving file: vmlinuz-6.6.31-current-sunxi64 Using ethernet@5020000 device TFTP from server 192.0.2.100; our IP address is 192.0.2.60 Filename 'vmlinuz-6.6.31-current-sunxi64'. Load address: 0x40080000 Loading: ################################################################# [...] ###################################### 122.1 KiB/s done Bytes transferred = 23445512 (165c008 hex) Retrieving file: uInitrd-6.6.31-current-sunxi64 Using ethernet@5020000 device TFTP from server 192.0.2.100; our IP address is 192.0.2.60 Filename 'uInitrd-6.6.31-current-sunxi64'. Load address: 0x4ff00000 Loading: ################################################################# ################################################################# ############################# 117.2 KiB/s done Bytes transferred = 10910324 (a67a74 hex) append: root=/dev/nfs initrd=uInitrd-6.6.31-current-sunxi64 nfsroot=192.0.2.100:/srv/exports/02-00-2e-12-34-56 ip=dhcp rw Retrieving file: dtb-6.6.31-current-sunxi64/allwinner/sun50i-h618-orangepi-zero3.dtb Using ethernet@5020000 device TFTP from server 192.0.2.100; our IP address is 192.0.2.60 Filename 'dtb-6.6.31-current-sunxi64/allwinner/sun50i-h618-orangepi-zero3.dtb'. Load address: 0x4fa00000 Loading: ### 109.4 KiB/s done Bytes transferred = 32981 (80d5 hex) Moving Image from 0x40080000 to 0x40200000, end=418f0000 ## Loading init Ramdisk from Legacy Image at 4ff00000 ... Image Name: uInitrd Image Type: AArch64 Linux RAMDisk Image (gzip compressed) Data Size: 10910260 Bytes = 10.4 MiB Load Address: 00000000 Entry Point: 00000000 Verifying Checksum ... OK ## Flattened Device Tree blob at 4fa00000 Booting using the fdt blob at 0x4fa00000 Working FDT set to 4fa00000 Loading Ramdisk to 49598000, end 49fffa34 ... OK Then it should boot up the kernel: Starting kernel ... [ 0.000000] Booting Linux on physical CPU 0x0000000000 [0x410fd034] [ 0.000000] Linux version 6.6.31-current-sunxi64 (armbian@next) (aarch64-linux-gnu-gcc (Ubuntu 11.4.0-1ubuntu1~22.04) 11.4.0, GNU ld (GNU Binutils for Ubuntu) 2.38) #1 SMP Fri May 17 10:02:40 UTC 2024 [ 0.000000] KASLR disabled due to lack of seed [ 0.000000] Machine model: OrangePi Zero3 [...] [ 0.000000] Kernel command line: root=/dev/nfs initrd=uInitrd-6.6.31-current-sunxi64 nfsroot=192.0.2.100:/srv/exports/02-00-2e-12-34-56 ip=dhcp rw rootwait [ 0.000000] Unknown kernel command line parameters "nfsroot=192.0.2.100:/srv/exports/02-00-2e-12-34-56", will be passed to user space. When booting is finished you can see that your root file system is now via NFS by executing the `mount` command and looking for the `/` filesystem: 192.0.2.100:/srv/exports/02-00-2e-12-34-56 on / type nfs (rw,relatime,vers=3,rsize=1048576,wsize=1048576,namlen=255,hard,nolock,proto=tcp,port=2049,timeo=600,retrans=10,sec=sys,local_lock=all,addr=192.0.2.100) ### NFS Benchmark vs Micro SD Card The following simple quick benchmark was done with the NFS server on a Raspberry Pi 4 booted from an SSD, plugged in the other gigabit port in the same PoE switch: dd if=/dev/zero of=./test1.img bs=20M count=1 oflag=dsync 1+0 records in 1+0 records out 20971520 bytes (21 MB, 20 MiB) copied, 1.86941 s, 11.2 MB/s root@opz3-2-midden-nfs:~# The same command when booted via a Micro SD card: root@opz3-1-onder:~# dd if=/dev/zero of=./test1.img bs=20M count=1 oflag=dsync 1+0 records in 1+0 records out 20971520 bytes (21 MB, 20 MiB) copied, 1.37473 s, 15.3 MB/s NFS could be faster if the NFS server is faster but I have not yet noticed any slowness or other issues when running this setup. The follow up article on my kubernetes adventure does note some problems with NFS as root filesystem but that mostly has to do with `overlayfs`. --- License: All the text on this website is free as in freedom unless stated otherwise. This means you can use it in any way you want, you can copy it, change it the way you like and republish it, as long as you release the (modified) content under the same license to give others the same freedoms you've got and place my name and a link to this site with the article as source. This site uses Google Analytics for statistics and Google Adwords for advertisements. You are tracked and Google knows everything about you. Use an adblocker like ublock-origin if you don't want it. All the code on this website is licensed under the GNU GPL v3 license unless already licensed under a license which does not allows this form of licensing or if another license is stated on that page / in that software: This program is free software: you can redistribute it and/or modify it under the terms of the GNU General Public License as published by the Free Software Foundation, either version 3 of the License, or (at your option) any later version. This program is distributed in the hope that it will be useful, but WITHOUT ANY WARRANTY; without even the implied warranty of MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE. See the GNU General Public License for more details. You should have received a copy of the GNU General Public License along with this program. If not, see . Just to be clear, the information on this website is for meant for educational purposes and you use it at your own risk. I do not take responsibility if you screw something up. Use common sense, do not 'rm -rf /' as root for example. If you have any questions then do not hesitate to contact me. See https://raymii.org/s/static/About.html for details.
